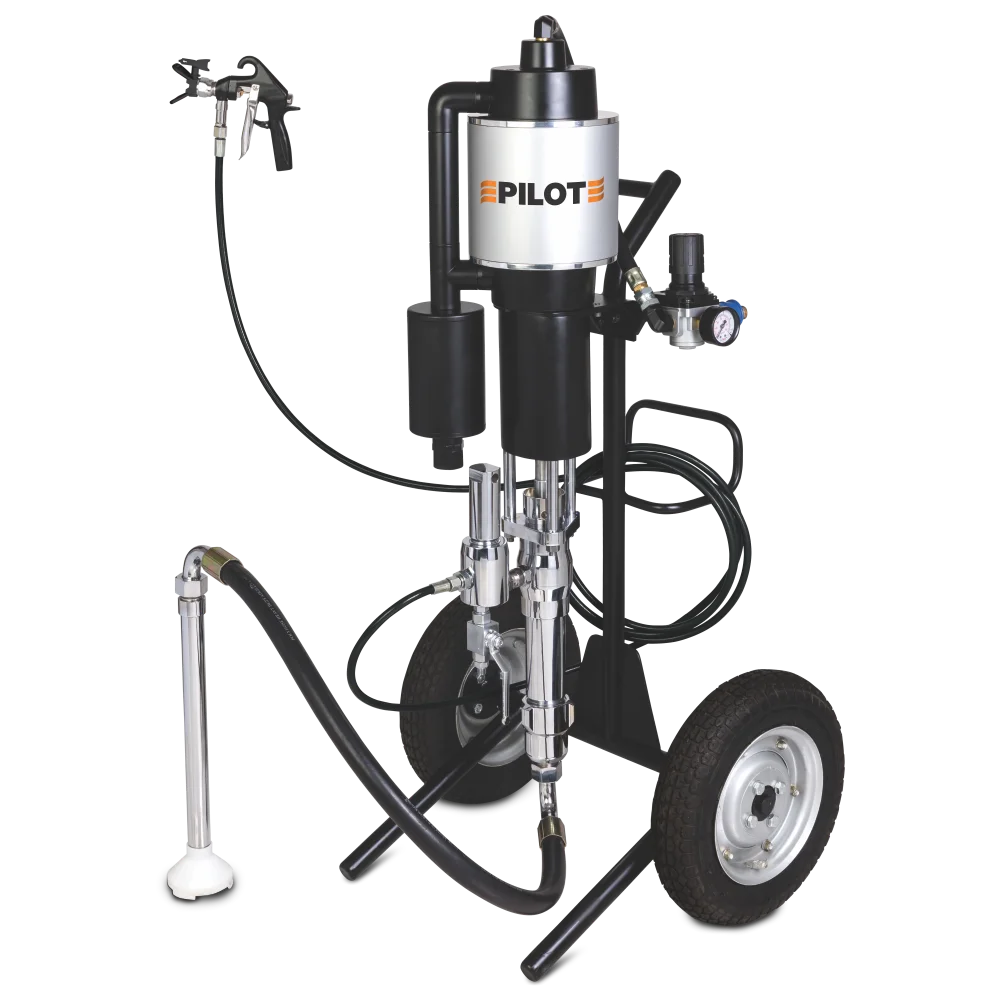

PNEUMATIC SERIES
Powerful, compact and budget friendly solution for spraying a wide range of paints and protective coatings. Sprays most Industrial coatings with multiple guns comfortably. Ideal for tough epoxy / pu protective coatings with high solids upto 100%. Used in spraying almost all architectural coatings including cement based putty. Unmatched performance with PILOTs Proprietary Super Breath Air Motor Technology.
PNEUMATIC
SERIES
Powerful, compact and budget friendly solution for spraying a wide range of paints and protective coatings. Sprays most Industrial coatings with multiple guns comfortably. Ideal for tough epoxy / pu protective coatings with high solids upto 100%. Used in spraying almost all architectural coatings including cement based putty. Unmatched performance with PILOTs Proprietary Super Breath Air Motor Technology.
PNEUMATIC AIRLESS
-
Enhanced capacity of around 4X higher Intake / Exhaust air valve with EXPONENTIAL AIR DRIVE SYSTEM.
-
Large flow path in fluid section to handle high solids, 100% solids and solvent free coatings.
Spray Gun Features:
-
Light weight, ergonomically designed spray gun.
-
Stainless steel pressure chamber and wetted parts.
-
Easy to maintain and service.
Exclusive features:
-
Revolutionary SUPER BREATH AIR MOTOR TECHNOLOGY*.
-
LESS PULSATION Smooth, rapid, sharp changeover even at high flow rates
-
STALL FREE OPERATION due to EXPONENTIAL AIR DRIVE SYSTEM
-
No spring loaded detents or sensing/poppet valves
-
ICING FREEDOM – Zero effect due to icing. Uninterrupted performance
TECHNICAL DATA

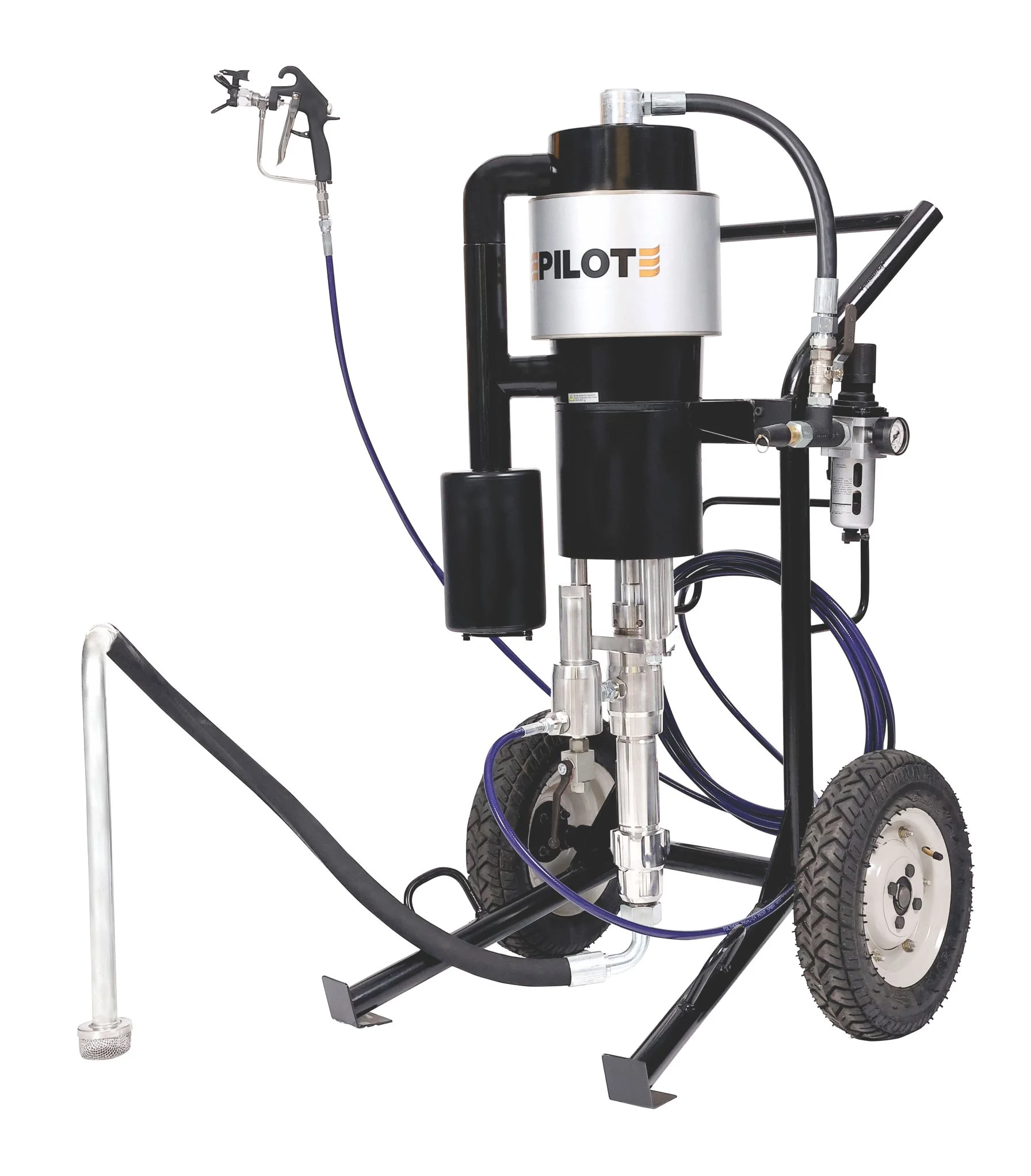

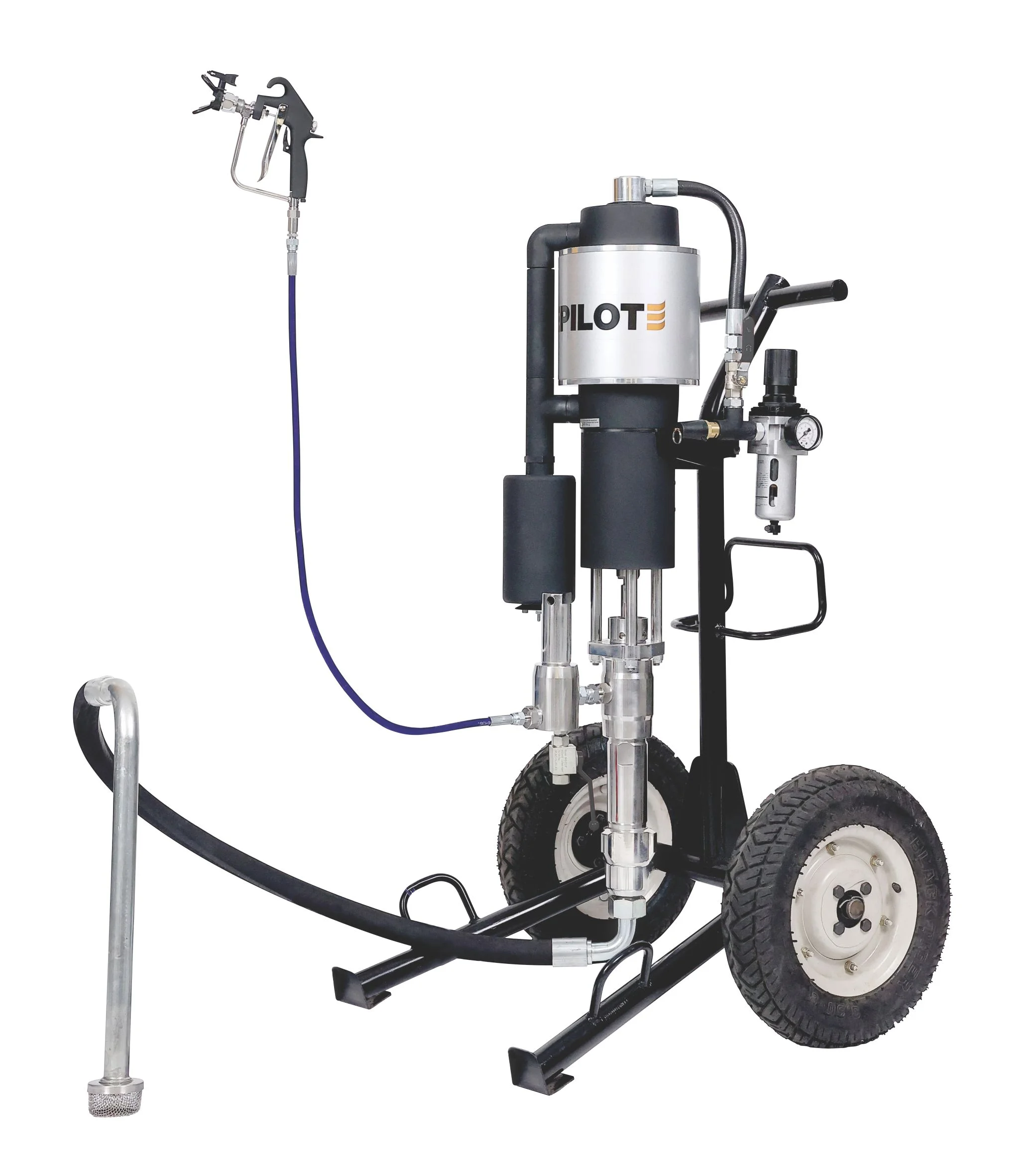

| PILOT PP 38 | PILOT PPT46 | PILOT PP 48 | PILOT PP 63 | PILOT PP 68 | PILOT PP 79 | |
| Pump ratio | 38:1 | 46:1 | 48:1 | 63:1 | 68:1 | 79:1 |
| Maximum working pressure (bar) | 266 | 337 | 336 | 441 | 476 | 553 |
| Maximum air input pressure (bar) | 7 | 7 .5 | 7 | 7 | 7 | 7 |
| Output Flow max. recommended (Lpm) | 11.4 | 7.2 | 9.6 | 7.2 | 11.4 | 9.6 |
| Air consumption per one litre of output spray volume in CFM# | 1.75 | 2.0 | 1.95 | 2.75 | 2.95 | 3.25 |
 Download Catalogue |
AREAS OF APPLICATION

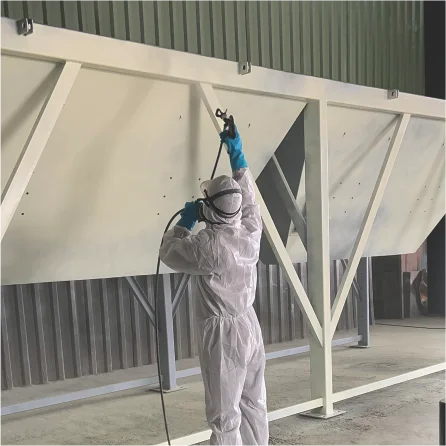

 Industrial painting |
 Ship painting |
 Railway |
 Marine |
 Pipe & other protective coating |

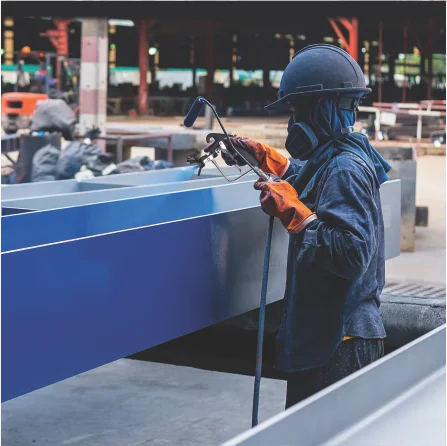

 PEB & industrial structural fabrication |
PNEUMATIC AIRLESS
(High Volume Low Pressure)
-
Enhanced capacity of around 4X higher Intake / Exhaust air valve with EXPONENTIAL AIR DRIVE SYSTEM.
-
Large flow path in fluid section to handle high solids, 100% solids and solvent free coatings.
Spray Gun Features:
-
light weight, ergonomically designed spray gun.
-
Stainless steel pressure chamber and wetted parts.
-
Easy to maintain and service.
Exclusive features:
-
Revolutionary SUPER BREATH AIR MOTOR TECHNOLOGY*.
-
LESS PULSATION Smooth, rapid, sharp changeover even at high flow rates
-
STALL FREE OPERATION due to EXPONENTIAL AIR DRIVE SYSTEM
-
No spring loaded detents or sensing/poppet valves
-
ICING FREEDOM – Zero effect due to icing. Uninterrupted performance
AREAS OF APPLICATION
Industrial painting |
Ship painting |
Railway |
Marine |
Pipe & other protective coating |
PEB & industrial structural fabrication |
TECHNICAL DATA
| PILOT PP 38 | PILOT PPT46 | PILOT PP 48 | PILOT PP 63 | PILOT PP 68 | PILOT PP 79 | |
| Pump ratio | 38:1 | 46:1 | 48:1 | 63:1 | 68:1 | 79:1 |
| Maximum working pressure | 266 bar | 337 bar | 336 bar | 441 bar | 476 bar | 553 bar |
| Maximum air input pressure | 7 bar | 7 .5bar | 7 bar | 7 bar | 7 bar | 7 bar |
| Output Flow max. recommended | 11.4 Lpm | 7.2 Lpm | 9.6 Lpm | 7.2 Lpm | 11.4 Lpm | 9.6 Lpm |
| Air consumption per one litre of output spray volume in CFM# | 1.75 | 2.0 | 1.95 | 2.75 | 2.95 | 3.25 |
